FJW
findrscope
紅外觀察儀，紫外觀察儀，紅外相機，熱觀察儀
產(chǎn)品主要包括：
350-1550nm紅外觀察儀：
84499A,84499A-5,
84499,84499-5,
85100,85100-5,
85100A,85100A-5,
85268,85268-5,
85268A,85268A-5,
89400,89400P
180-1550nm紫外觀察儀：85300,85300-5
400-1800nm紅外相機：85720,85700
400-2200nm紅外相機：85726,85706
7-14um熱觀察儀：85800
顯微鏡用紅外/紫外觀察儀：85430A,85430A-5,84530UV-5,84530UV
紅外濾光片輪式觀察儀：85338A
頭戴式紅外觀察儀：85050A ,85051A

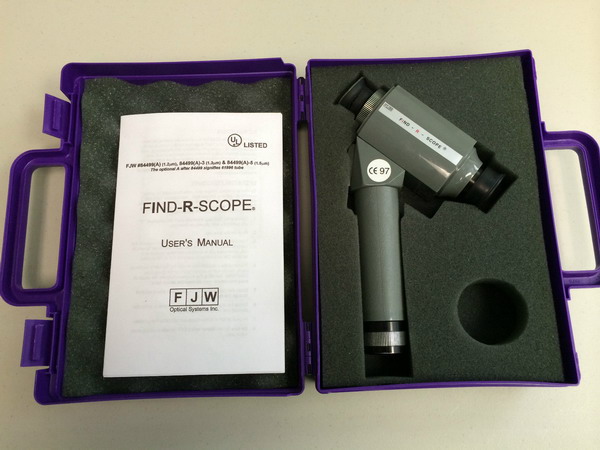

84499A紅外觀察儀
| Field of View : |
40° |
| Magnification: |
~ 1:1 |
| Spectral Sensitivity : |
350-1350nm |
| Lens: |
Custom Infragon 25mm, f/1.0 |
| Standard Focal Range : |
100mm, (4") to infinity |
| Regions Displayed: |
Near UV, Visible, Near-IR |
| Peak Sensitivity : |
800nm |
| Resolution |
70 Lines/mm, minimum |
| Display: |
P20 Phosphor |
| Power: |
(1) standard "C" cell alkaline battery |
| Battery Life : |
>250-hours int., 375-hours continuous |
| Sensitivity Test : |
See 1350nm, 400μW LED @ 8-ft. |
| Operating Temperature |
-32° to 46°C, (-25 to 115°F) |
The FIND-R-SCOPE 84499A is a self-contained, hand-held Infrared Viewer with a spectral sensitivity of 350-1350 nm.
- Lightweight
- Self-Contained
- UL Approved
- High-Resolution
- Custom f/1.0 Infragon Lens
- User Adjustable Eyepiece
- Standard Tripod Mount
|
- Accepts Optional Filters
- Accepts Close-up Lenses
- Accepts Optional Iris
- Accepts Optional CCD Mt.
- Includes Battery
- Includes Hard Side Case
- 18-Month Limited Warranty
|
|
