PD-LD激光二極管，VBG光柵技術產品

PD-LD是一家光電子公司，總部在美國新澤西州彭寧頓，主要生產并裝配帶尾纖或者帶光纖插口的二極管激光器、LED、探測器、高功率的脈沖激光以及光纖通信中的雙向裝置。是新澤西州發展快的技術性公司，PD-LD公司同時也生產客戶定制的VBG零件，以及在拉曼光譜，高功率激光，顯示器等方面需要使用的內置VBG的激光。

PD-LD’s的有源器件和無源器件，無論標準的或定制的，總有器件能滿足客戶的產品要求，客戶遍布光通訊，傳感，自動化，航空，光譜學，醫學工業等各個領域，且都為上述領域的領導者。PD-LD不僅僅只限于為芯片提供封裝，而且擁有一些世界級的光學專家，他們擁有高深的專業知識，能滿足客戶提出的苛刻的定制要求。

PD-LD公司是VBG光柵技術的全球先驅，近剛剛獲得一項新，可以使激光二極管結構更加簡單，效率更加穩定。這項發明使用的VBG技術可以改善多種發光裝置的輸出特性，如激光器，激光二極管，發光二極管等。這項用來改進技術，并且已經廣泛使用在拉曼光譜，激光泵浦以及光纖通信中。其中提供了一個修改或者改進激光輸出光譜的方法。使用了一個特殊的光學元件提高激光的穩定性。

“這項新的發明使得PD-LD公司的數達到了14個，這也證明了我們在VBG領域的領導地位，立足在我們已有的基礎上，在工業化以及應用方面，我們的數將不斷增長。”PD-LD公司的總裁兼CEO弗拉基米爾博士如此說到。

PD-LD公司的輸出波長為523nm或者785nm的新型拉曼激光光源，采用光纖耦合輸出，通過使用PD-LD公司專有的VBG-stabilized的808nm激光器，泵浦倍頻到532nm的YAG晶體，實現了50mW的輸出功率。 該光源具有窄線寬、高功率、緊湊及牢固的設計，使其特別適用于便攜儀器應用。其小巧的外形和簡單的接口使其成為工業、軍事和應用的理想選擇。還推出了TO封裝光源，激光芯片被密封在TO-9或者TO-56中，整個TO結構整合在一個銅質的散熱器中，以達到光學特性。出光口安裝了非球面棱鏡以及PD-LD公司的VBG，對光路進行壓縮，并且得到窄帶激光，是拉曼光譜的理想光源。在原先LML-785.0RB-XX的基礎上，通過改變制冷方式，使得光源盒可以在-15攝氏度至50攝氏度的環境中工作，由此衍生出新的型號LML-785.0CB-XX。新款的產品同樣繼承了上代產品的緊湊型外觀，只有76*64*17mm的大小，在這么大的體積上整合了5V的電壓輸入，可編程的USB等接口，光輸出通過一個FC/APC接口耦合到光纖中，使用十分便捷。

訪問PD-LD網站

VBG stabilized laser diodes for Raman spectroscopy and instrumentation

A major application for VBG stabilized laser diodes is instrumentation, such as Raman spectroscopy, flow cytometry, DNA sequencing and other bio-instrumentation. The VBG wavelength stabilized devices have excellent characteristics: Both, stabilized laser diodes and complete, high stbility laser modules, (sources), for Raman spectroscopy and other instruments are available.

Single frequency to multimode operation
Wide range of power level adjustability
Stability over wide temperature ranges
Free-space or fiber coupled configuration
Standard wavelengths are 532 nm and 785 nm, others available
Butterfly Packages Datasheets
VBG Coaxial Packages Datasheets
VBG Raman Boxx

VBG wavelength stabilization of high power laser diodes and laser diode arrays

Another major application of VBG technology is the wavelength stabilization of high power laser diodes and laser diode arrays, e.g., for more efficient pumping of solid state lasers and fiber lasers. Some dramatic improvements have been achieved:

Narrow line width, < 0.5 nm
Precise center wavelength control, +/- 0.5 nm
Reduced thermal drift, ~0.01 nm/C

VBG Wavelength Stabilized High Power Laser Diodes – Single Emitters
VBG Wavelength Stabilized High Power Laser Diodes – Diode Arrays
VBGr Wavelength Stabilizers
VBG Packaging Services

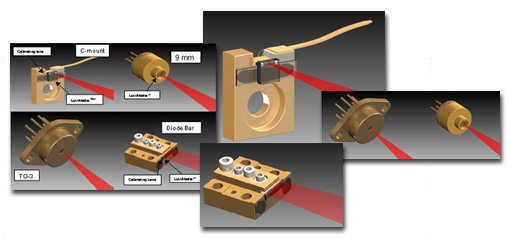

VBG Wavelength Stabilized High Power Laser Diodes – Single Emitters

VBG wavelength stabilization can be applied to laser diodes of any power or wavelength. Our standard products in the single emitter line are 1, 2 and 3 Watt diodes in C-mount, TO 3 and 9 mm can packages. Standard wavelengths are 785 nm, 808 nm, 938nm and 976 nm. Please inquire about the availability of other wavelengths.

The geometry and dimensions of VBG stabilized diodes are comparable to standard high power laser diodes. VBG stabilized diodes have many important applications, e.g., in diode pumping of solid state lasers, in spectroscopy and sensing, and in medical and military areas.

VBG 785 nm Laser Datasheet
VBG 808 nm Laser Datasheet
VBG 938 nm(1W) Laser Datasheet
VBG 976 nm(1W) Laser Datasheet
VBG 976 nm(2W) Laser Datasheet
VBG Pigtailed Wavelength Stabilized TO-5 Laser

VBG Wavelength Stabilized High Power Laser Diodes – Diode Arrays
VBG wavelength stabilization can be applied to laser diode arrays of any power or wavelength. The improvement in the emission characteristics is the same as in the case of single emitters. The geometry and dimensions of VBGr stabilized diode arrays are comparable to standard diode arrays.

Our standard VBG stabilized diode arrays include 20 and 40 watt devices emitting at 808 nm, 938 nm or 976 nm. Please inquire about other choices.

VBG 794.5nm (40W) Laser Array Datasheet
VBG 795 nm (40W) Laser Array Datasheet
VBG 808 nm (20W) Laser Array Datasheet
VBG 808 nm (40W) Laser Array Datasheet

VBG Wavelength Stabilizers

We also offer our VBG wavelength stabilizers as separate products. These come in sizes suitable for single emitters or in sizes suitable for diode arrays stabilization. Stabilizers for diode array stacks are also available. Furthermore, we provide detailed application notes for use of VBG stabilizers.

Standard wavelengths are 785 nm, 808 nm, 938 nm, and 976 nm. Custom wavelengths and sizes are available.

VBG Stabilizer

VBG Raman Boxx

Raman Boxx is a compact laser source module, particularly suitable for Raman spectroscopyIts wavelength and power stability matches much costlier laser modules.Present products are based on 532 nm and 785 nm lasers, but other wavelengths are also available.Power output ranges from 10 mw to over 1 watt. Line widths of less than 40 MHz are available, The unit can be configured for free space or fiber coupled operation.Fast turn-on, wide temperature range operation.

785nm Raman Source

各種定制VBG光柵

single VBG

Chirped VBG

Lensed VBG

激光二極管：PE13W0051FCA-0-0-01

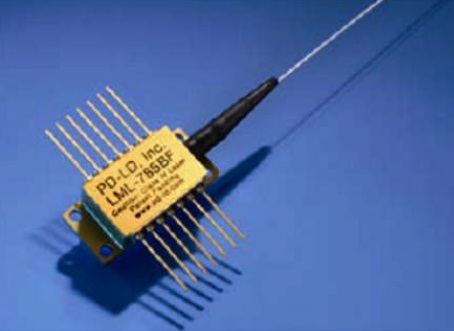

VBG穩頻拉曼激光器：LML-785.0BF-09 蝶形封裝

SLM-785/660 free space
SLM-785/660 Single mode PM fiber coupled

VBG穩頻單模激光器，用于拉曼測量

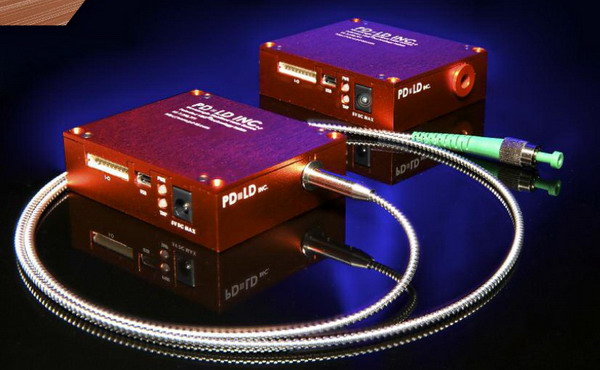

SLM-632 free space
SLM-632 single mode PM fiber coupled

632nm單模激光器，可替代He-Ne激光器

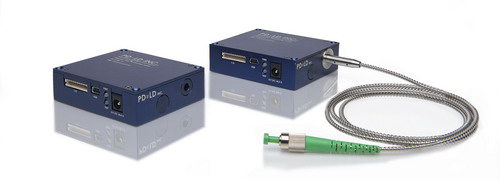

LuxxMaster Raman Boxx 大型高功率拉曼激光器

可選波長: 647nm, 780nm, 785nm, 830nm, 1064nm

大1.5w

LuxxMaster Raman Boxx 小型緊湊拉曼激光器

可選波長: 647nm, 780nm, 785nm, 830nm, 1064nm

GB-530 Stabilized Fiber Coupled Single Mode Green
530nm穩頻光纖輸出激光器

具體歡迎來電咨詢
