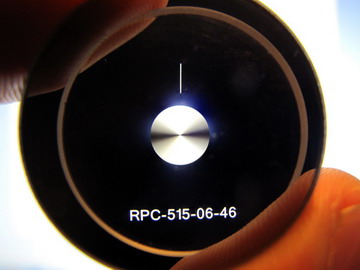

S-waveplate偏振轉換片

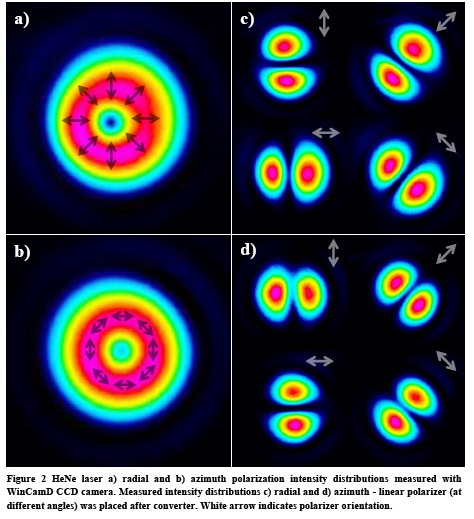

Altechna和Wophotonics公司的產品：S-waveplate偏振轉換片是一種超結構波片可以將線偏振光轉換為輻射狀或環狀偏振。

特點：
- Converts linear polarization to radial or azimuthal
- Can be used to create an optical vortex
- High damage threshold
- Nearly 100% efficiency in polarization conversion for dedicated wavelengths
- 50-90% transmission (AR coatings applicable)
- Large aperture possible (up to 10 mm or bigger; standard is 6 mm)
- No glued components – more resistant to heat
- No “ineffective center” problem
- No segment stitching
Product |
Operation wavelength |
Transmission |
Clear Aperture, mm |
| RPC-488-02 |
488 nm ±15 nm |
> 40 % |
2 |
| RPC-488-04 |
4 |
| RPC-488-06 |
6 |
| RPC-488-08 |
8 |
| RPC-515-02 |
515 nm ±20 nm |
> 45 % |
2 |
| RPC-515-04 |
4 |
| RPC-515-06 |
6 |
| RPC-515-08 |
8 |
| RPC-632-02 |
632 nm ±20 nm |
> 50 % |
2 |
| RPC-632-04 |
4 |
| RPC-632-06 |
6 |
| RPC-632-08 |
8 |
| RPC-800-02 |
800 nm ±25 nm |
> 55 % |
2 |
| RPC-800-04 |
4 |
| RPC-800-06 |
6 |
| RPC-800-08 |
8 |
| RPC-1030-02 |
1030 nm ±35 nm |
> 65 % |
2 |
| RPC-1030-04 |
4 |
| RPC-1030-06 |
6 |
| RPC-1030-08 |
8 |
| RPC-1550-02 |
1550 nm ±40 nm |
> 75 % |
2 |
| RPC-1550-04 |
4 |
| RPC-1550-06 |
6 |
| RPC-1550-08 |
8 |
