ALPHA15是一款基于Zynq 7020片 SoC的可編程板卡。它配備兩個18位、15Msps的模數轉換器，具有高動態范圍和低噪聲前端。其高輸入阻抗（最高可達1兆歐姆）易于驅動，并且能夠直接連接傳感器�？蛇x擇兩種輸入范圍：2 Vpp（±1 V）或8 Vpp（±4 V）。得益于極低閃爍噪聲拐角頻率（低于50赫茲），ALPHA15在高過采樣應用中表現出色。此外，該板卡還配備了一個雙通道16位、250Msps低延遲DAC以及一個四通道16位精密DAC。高速數據轉換器由一個雙PLL、超低抖動時鐘發生器提供時鐘信號。該板卡附帶一套全面的開源現場可編程門陣列（FPGA）/Linux參考設計。

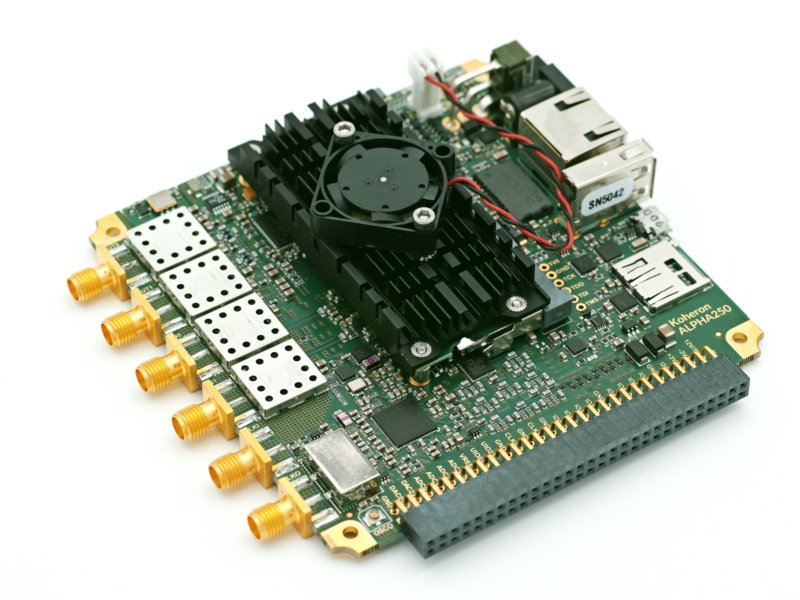

ALPHA250是一款基于Zynq 7020片 SoC的可編程板卡。它配備了一個100 MHz射頻（RF）前端，具有14位模數轉換器（ADC）和16位數模轉換器（DAC），采樣速率達250 Msps。射頻通道由一個雙鎖相環（PLL）、超低抖動時鐘發生器提供時鐘信號。此外，該板卡還包括一個4通道24位ADC和一個4通道16位DAC。板卡附帶一套全面的開源現場可編程門陣列（FPGA）/Linux參考設計。
| 產品型號 |
產品說明 |
| HTC200 |
Digital heater controller數字加熱控制器
HTC200-20V-NTC10K |
| TB4300 |
Interface board for 4 x CTL3004通道 CTL300 接口板 |
| PDX20S |
Precision free-space photodetector高精度自由空間光電探測器
PDX20S-1-DC-INGAAS |
| PDX10S-INGAAS |
InGaAs free-space photodetector銦鎵砷（InGaAs）自由空間光電探測器
PDX10S-5-DC-INGAAS Transimpedance gain 5 kV/A / Wavelength range 900 to 1700 nm
PDX10S-5-DC-LWINGAAS Transimpedance gain 5 kV/A / Wavelength range 1000 to 2100 nm
PDX10S-1M-DC-INGAAS Transimpedance gain 1 MV/A / Wavelength range 900 to 1700 nm |
| TEC200 |
Digital temperature controller數字溫度控制器
TEC200-4V TEC voltage +/- 4 V
TEC200-8V TEC voltage +/- 8 V |
| HV100 |
High-voltage amplifier高壓放大器 |
| CTL20 |
Digital butterfly anode-grounded laser diode controller數字蝶形陽極接地激光二極管控制器
CTL20-2-100-B7 Laser current 100 mA
CTL20-2-200-B7 Laser current 200 mA |
| BTF100 |
Butterfly laser diode mount蝶形激光二極管安裝座
BTF100-1-TB Laser type 1
BTF100-2-TB Laser type 2 |
| PDX10R |
Free-space logarithmic photodetector自由空間對數光電探測器
PDX10R-D-SI Photodiodes Si
PDX10R-D-INGAAS Photodiodes InGaAs |
| TIA100 |
Transimpedance amplifier跨阻放大器
TIA100-2k-SMA |
| PD4Q |
4-quadrant photodetector四象限光電探測器
PD4Q-10k Transimpedance gain 10 kV/A
PD4Q-100k Transimpedance gain 100 kV/A |
| DRV800 |
8-channel digital laser driver8通道數字激光驅動器
DRV800-8-200 |
| TIA400 |
Quad-channel transimpedance amplifier四通道跨阻放大器
TIA400-2k |
| AMP200 |
Low-noise voltage preamplifier低噪聲電壓前置放大器
AMP200-1M Input impedance 1 MOhm
AMP200-10k Input impedance 10 kOhm |
| SPS200 |
Dual power supply雙通道電源
SPS200-PN Outputs Positive / Negative
SPS200-PN-HV Outputs Positive / Negative / High voltage
SPS200-PP Outputs Positive / Positive
SPS200-PP-HV Outputs Positive / Positive / High voltage
SPS200-PN-SHLD Outputs Positive / Negative / Mounted shield
SPS200-PN-HV-SHLD Outputs Positive / Negative / High voltage / Mounted shield
SPS200-PP-SHLD Outputs Positive / Positive / Mounted shield
SPS200-PP-HV-SHLD Outputs Positive / Positive / High voltage / Mounted shield |
| PDX10B-SI |
Si free-space balanced photodetector硅（Si）自由空間平衡光電探測器
PDX10B-3-DC-SI Transimpedance gain 3 kV/A
PDX10B-80-DC-SI Transimpedance gain 80 kV/A |
| DRV300 |
Low noise cathode-grounded laser driver低噪聲陰極接地激光驅動器
DRV300-A-10 Laser current 10 mA
DRV300-A-40 Laser current 40 mA
DRV300-A-200 Laser current 200 mA |
| SPS101 |
Quad-channel adjustable power supply四通道可調電源
SPS101 +VCC2 3 V - 6 V
SPS101-HV +VCC2 11 V - 20 V |
| PDX10S-SI |
Si free-space photodetector硅（Si）自由空間光電探測器
PDX10S-5-DC-SI Transimpedance gain 5 kV/A
PDX10S-1M-DC-SI Transimpedance gain 1 MV/A |
| CTL300E |
Industrial laser diode controller工業級激光二極管控制器
CTL300E-1-400 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 400 mA
CTL300E-1-800 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 800 mA
CTL300E-1-1200 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 1200 mA
CTL300E-1-1600 Laser mount Butterfly ZIF socket / Laser type 1 / Laser current 1600 mA
CTL300E-2-400 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 400 mA
CTL300E-2-800 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 800 mA
CTL300E-2-1200 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 1200 mA
CTL300E-2-1600 Laser mount Butterfly ZIF socket / Laser type 2 / Laser current 1600 mA
CTL300E-1-400-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 400 mA
CTL300E-1-800-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 800 mA
CTL300E-1-1200-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 1200 mA
CTL300E-1-1600-NOZIF Laser mount Butterfly no socket / Laser type 1 / Laser current 1600 mA
CTL300E-2-400-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 400 mA
CTL300E-2-800-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 800 mA
CTL300E-2-1200-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 1200 mA
CTL300E-2-1600-NOZIF Laser mount Butterfly no socket / Laser type 2 / Laser current 1600 mA
CTL300E-0-400 Laser mount Screw terminal / Laser current 400 mA
CTL300E-0-800 Laser mount Screw terminal / Laser current 800 mA
CTL300E-0-1200 Laser mount Screw terminal / Laser current 1200 mA
CTL300E-0-1600 Laser mount Screw terminal / Laser current 1600 mA |
| TB300 |
Breakout for CTL300CTL300 分線板 |
| QPS100 |
Low noise linear power supply低噪聲線性電源
QPS100P-5 Output voltage +5 V
QPS100N-5 Output voltage -5 V |
| PD10S |
High dynamic range photodetector高動態范圍光電探測器
PD10S-5-DC |
| PD10TIA |
Transimpedance amplifier跨阻放大器
PD10TIA-80-DC |
| PD10B |
High-gain balanced photodetector高增益平衡光電探測器
PD10B-3-DC Transimpedance gain 3 kV/A
PD10B-80-DC Transimpedance gain 80 kV/A |
| CTL101 |
Low noise butterfly laser diode controller低噪聲蝶形激光二極管控制器
CTL101-1-B-100 Laser type 1 / Laser current 100 mA
CTL101-1-B-200 Laser type 1 / Laser current 200 mA
CTL101-1-B-400 Laser type 1 / Laser current 400 mA
CTL101-1-B-800 Laser type 1 / Laser current 800 mA
CTL101-2-B-100 Laser type 2 / Laser current 100 mA
CTL101-2-B-200 Laser type 2 / Laser current 200 mA
CTL101-2-B-400 Laser type 2 / Laser current 400 mA
CTL101-2-B-800 Laser type 2 / Laser current 800 mA |
| QCL100 |
Quantum cascade laser driver量子級聯激光驅動器
QCL100-A-500 Max. output current 650 mA
QCL100-A-1000 Max. output current 1300 mA |
| DRV200S |
Low noise laser driver with external setpoint帶外部設定點的低噪聲激光驅動器
DRV200S-A-40 Laser current 40 mA
DRV200S-A-200 Laser current 200 mA
DRV200S-A-400 Laser current 400 mA |
| AMP100 |
Variable-gain amplifier可變增益放大器 |
| CTL200-0 |
Digital laser diode controller數字激光二極管控制器
CTL200-0-B-200 Laser current 200 mA
CTL200-0-B-400 Laser current 400 mA
CTL200-0-B-600 Laser current 600 mA |
| VREF100 |
Quad-channel bipolar voltage source四通道雙極性電壓源
VREF100-50 |
| CTL200 |
Digital butterfly laser diode controller數字蝶形激光二極管控制器
CTL200-1-B-100 Laser type 1 / Laser current 100 mA
CTL200-1-B-200 Laser type 1 / Laser current 200 mA
CTL200-1-B-400 Laser type 1 / Laser current 400 mA
CTL200-1-B-600 Laser type 1 / Laser current 600 mA
CTL200-2-B-100 Laser type 2 / Laser current 100 mA
CTL200-2-B-200 Laser type 2 / Laser current 200 mA
CTL200-2-B-400 Laser type 2 / Laser current 400 mA
CTL200-2-B-600 Laser type 2 / Laser current 600 mA |
| PI200 |
Laser servo controller激光伺服控制器
PI200 Setpoint -2.5 V to 2.5 V / Slow integrator 800 mHz - 800 Hz
PI200-T Setpoint -2.5 V to 2.5 V / Slow integrator 8 mHz - 8 Hz
PI200-ZS Setpoint 0 V / Slow integrator 800 mHz - 800 Hz
PI200-T-ZS Setpoint 0 V / Slow integrator 8 mHz - 8 Hz |
| PD01 |
High sensitivity photodetector高靈敏度光電探測器
PD01-AC-400 Coupling AC
PD01-DC-400 Coupling DC |
| ALPHA250 |
250 Msps acquisition board250 Msps 采集卡
ALPHA250 RF front end 2 ADC, 2 DAC
ALPHA250-4 RF front end 4 ADC
ALPHA250-BP RF front end 2 ADC, 2 DAC / Mounted baseplate
ALPHA250-4-BP RF front end 4 ADC / Mounted baseplate |
| DRV110 |
Ultra low noise high-voltage laser driver超低噪聲高壓激光驅動器
DRV110-A-375 Laser current 375 mA
DRV110-A-750 Laser current 750 mA
DRV110-A-1200 Laser current 1200 mA |
| DRV200 |
Low noise laser diode driver with modulation帶調制功能的低噪聲激光二極管驅動器
DRV200-A-40 Laser current 40 mA
DRV200-A-200 Laser current 200 mA
DRV200-A-400 Laser current 400 mA |
| PD10R |
Dual logarithmic photodetector雙對數光電探測器
PD10R InGaAs photodiodes mounted
PD10R-NOP No photodiodes |
| TEC100L |
Linear temperature controller線性溫度控制器
TEC100L-50 |
| DRV100 |
Low noise laser diode driver低噪聲激光二極管驅動器
DRV100-A-40 Laser current 40 mA
DRV100-A-200 Laser current 200 mA |
| PD100B |
100 MHz balanced photodetector100 MHz 平衡光電探測器
PD100B-AC InGaAs photodiodes mounted / Coupling AC
PD100B-DC InGaAs photodiodes mounted / Coupling DC
PD100B-AC-NOP No photodiodes / Coupling AC
PD100B-DC-NOP No photodiodes / Coupling DC |
| PD100 |
Low noise photodetector低噪聲光電探測器
PD100-AC InGaAs photodiode mounted / Coupling AC
PD100-DC InGaAs photodiode mounted / Coupling DC
PD100-AC-NOP No photodiode / Coupling AC
PD100-DC-NOP No photodiode / Coupling DC |
| PD200T |
200 MHz TTL-analog photodetector200 MHz TTL-模擬光電探測器 |
